Designed for large pipelines with remote communication facilities

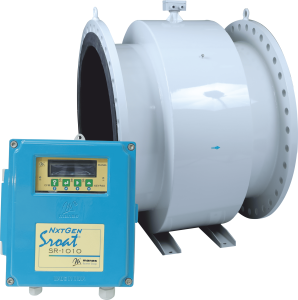

MEGA SROAT is a series of Large Electromagnetic Flow Meters introduced by Manas. The size ranges from 400 mm in diameter to 1600 mm in diameter. These flow meters are very accurate (typically 0.5% of the actual flow rate). The hard ebonite rubber lining makes these meters suitable for the measurement of raw water containing even abrasive sand, quartz particles, mud, etc., and they all deliver long life.
These large flowmeters are popular for big water projects and irrigation projects. this series is also suitable for sewage applications.
Features
- Diameters are available from DN400 to DN1000. (Higher Diameters on request)
- Extremely suitable for very high flow rate, accurate water metering.
- Available in Ebonite lining. Polyurethane on request possible.
- High accuracy of measurement like 0.5% of reading.
- No Pressure Drop across the sensor, being full bore construction.
- Long-lasting Ebonite rubber lining gives the long life to the sensor.
- End connection flanges as per customer’s requirements.
Applications
- Extremely useful for large water supply schemes.
- Suitable for Sewage measurement.
- Municipal Water measurement schemes.
- Irrigation schemes.
Benefits
- Robust, rugged, welded steel or stainless steel construction withstanding IP 68
- Suitable for buried or submerged applications
- Much better accuracy compared to other types of meters in its class
- Measurement independent of un-dissolved solids
Product Details
| Primary Flow Sensor | Mega Sroat |
| Display | Digital |
| Meter Size | DN400 to DN1600 (Sizes above DN 1000 available on request) |
| Pipe Material | SS304(nonmagnetic) |
| Liner Material | Hard rubber/PTFE |
| Flanges Material | CS/SS 316/SS 304/ SS 316 |
| Coil Housing Material | CS (Polyurethane Painted)/SS304/SS316 |
| Body Material | CS/SS 316/SS 304 |
| Media Pressure | PN10 |
| Media Temperature | 0-80 deg C max |
| Operating Ambient Temperature | 0-60 deg C |
| Ingress Protection | IP-68 |
| High accuracy of measurement | 0.5%. of Reading. |
| Transmitter | SR1000A / SR1000AP / MS1010 |
| Transmitter Mounting | Remote / Integral |
FAQ's
Large electromagnetic flow meters are commonly used in industries where there is a need to measure the flow of large volumes of conductive fluids, such as water and wastewater treatment plants, industrial processes, mining, and irrigation systems.
They are available in sizes ranging from a few millimeters to several meters in diameter. At Manas, we provide a line size ranging from DN 400 to DN1600.
