Sandwich type design that saves cost
Water is the most vital utility in any industry, hence Manas has produced an affordable variety of electromagnetic flowmeters for accurate water flow measurement.

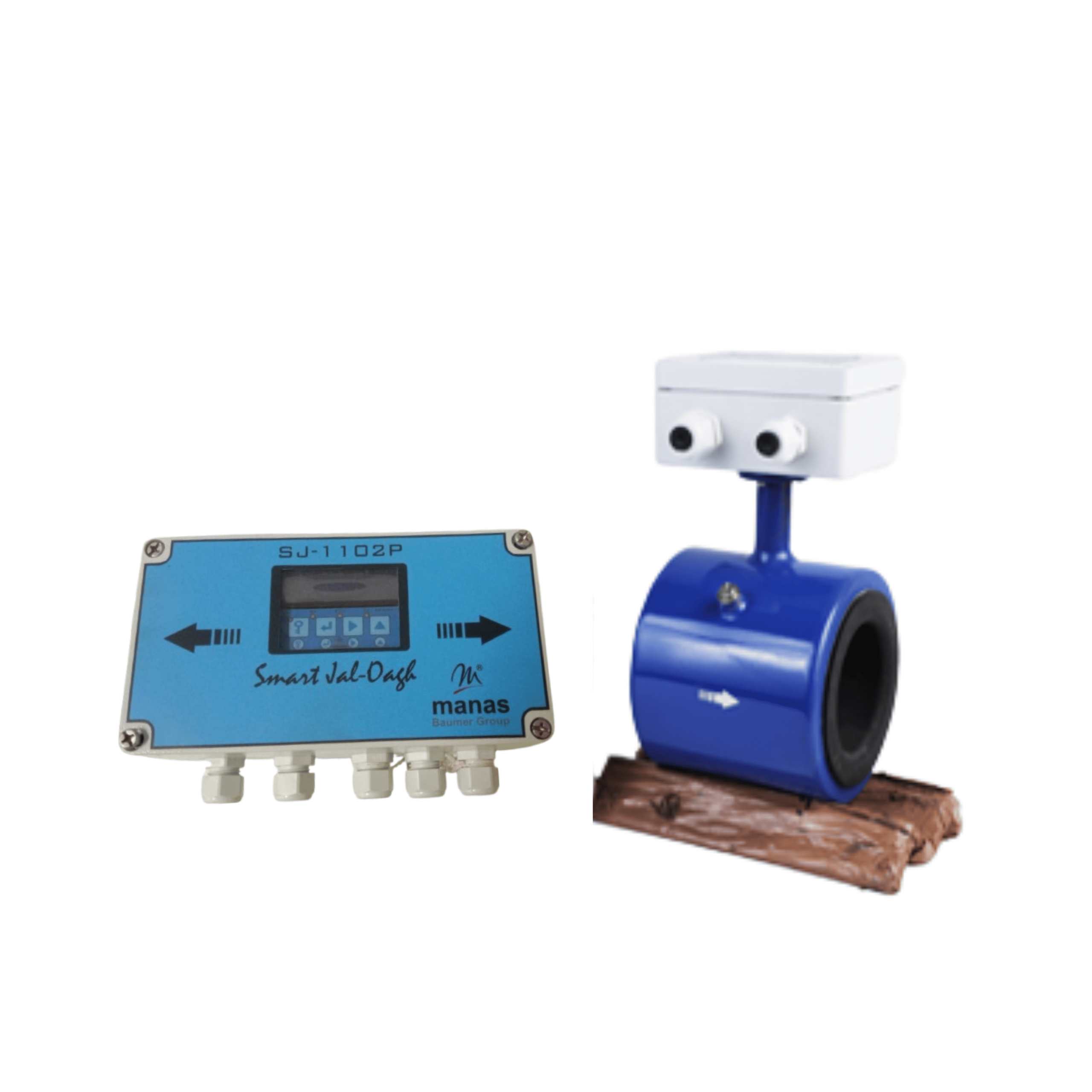

Wafer Style electromagnetic Flow Meter, called Jal-Oagh provides the solution to knowing your water use, not only by guesswork but by proper instrumentation with economy and fairly good accuracy.
Sizes available for Wafer Type are DN 50 to DN 200
Features
- Small in size, light in weight compared to other magnetic meters in its class
- Full bore electromagnetic flow meter with absolutely no restriction to flow
- Has a typical accuracy of ± 1 %.
- Measurement is independent of the velocity profile across the pipe.
- Measurement results are independent of density, viscosity, pressure, temperature, solid impurities, and conductivity variations (above 5 µ S/cm for MFT-01 & above 20 µS/cm for SJ-1101)
Applications
- Effluent Treatment: Untreated as well as Treated Effluent Water Measurement.
- Sewage Treatment: Wastewater measurement, Sludge measurement etc.
- Water Supply Schemes: Raw water as well as treated water measurement.
- In Boiler: Boiler Feed Water Measurement.
- Chemical Industries: Measurement of acidic & alkaline chemicals & slurries.
Benefits
- Fits inbetween the flanges of the pipe which makes it the most compact solution for flow measurement
- Compatible with all corrosive and noncorrosive liquids
- Cost-effective and economical flow meter
Product Details
Brand | manas microsystems |
Mounting | JAL-OAGH 300 and SMART JAL-OAGH 300 – In-Line [Sandwiched between 2 ANSI 150 Class Flanges] |
Line Size | DN 50 to DN 200 |
Liner Material | PTFE / HR |
Electrode MOC | SS316, Hastelloy C |
Coil Housing | SS 304 Without Paint |
Display | Digital |
Accuracy | Better than 1% of reading |
Media Pressure
|
40 Bar – From DN 50 to DN 80
16 Bar – From DN 100 to DN 200 |
Media Temperature | For PTFE Liner – 0 to 150⁰C
For Hard Rubber – 0 to 90⁰C |
Min Media Conductivity | Greater than 5 S/cm |
Ingress Protection | IP-67 |
Transmitter | MFT-01 / SJ-1102 |
Communication | RS 485(default) / RS 232(optional) available in SJ-1102 |
Transmitter Mounting | Remote / Integral |
FAQ's
A wafer style electromagnetic flow meter is a type of flow meter that measures the flow rate of conductive liquids (such as water) by utilizing the principles of electromagnetic induction. It is called “wafer style” because it is designed to be installed between flanges in a pipeline without the need for additional spools or flanges.
Wafer style meters are relatively easy to install and don’t require a lot of space. They are also suitable for a wide range of pipe sizes. Additionally, they provide accurate measurements for conductive liquids with high reliability and low maintenance requirements.
